Product Description

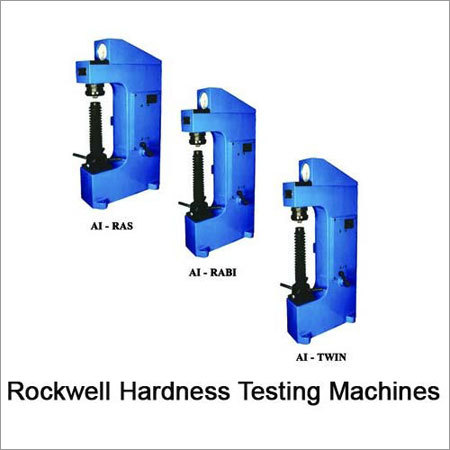

Rockwell Hardness Testing Machines

FEATURES:

Hardness Testers Models Al-RAS, Al - RASM, Al - RABI, Al - RAB 250, Al -TWlN are manually operated. All these models are suitable for testing hardness of metals & alloys of all kinds hard or soft, whether flat, round or irregular in shape. These testers are simple in design & easy to operate, yet sensitive & accurate. Various models from the wide range are suitable for schools, laboratories, tool room, inspection departments, factories etc. These testers strictly conform to
IS : 1586 - 2000, BS :891 parts 1 & 2, ASTM : E 18 for Rockwell Test, IS : 2281 - 1983, BS : 240, ASTM : E10 for Brinell Test & IS " 1586-2000, ASTM : E18 for Rockwell Superficial Test.

ROCKWELL SYSTEM

MODEL : Al RAS
Automatic load selection with automatic zero setting dial gauge. Manual Operation.

MODEL : AI RASM
Similar to 'Al RAS' but motorised model. Semiautomatic operation for production testing. Drive motor single phase 230 v 50 cycles.

ROCKWELL / BRINELL COMBINED SYSTEM

MODEL : Al-RABI
Automatic load selection with automatic zero setting dial gauge. Facility for Brinell Tests with 187.5 kgf. load with 2.5 mm ball lndenter, additional load 250 kgf. with 5 mm ball lndenter for testing hardness of non-ferrous metal. Manual Operation.

MODEL : AI-RAB 250
Similar to Al-RABI but bigger capacity Diamond Holder is guided in a set of two ball cage, which enables testing of small pins having dia. less than 6 mm (upto 3mm dia)

ROCKWELL / ROCKWELL SUPERFICIAL COMBINED SYSTEM

MODEL : AI TWIN
Manual load selection with automatic zero setting dial gauge. Manual Operation. Diamond Holder is guided in a set to two ball cage, which enables testing of small pins having dia. less than 6 mm.
(upto 3 mm dia.)

Standard Accessories

Model	AI-RAS/AI-RASM	AI-RABI/AI-RAB 250	AI-TWIN
Testing table 50mm	1 pc	1 pc	1 Pc
Testing table 38mm, with V groove for round jobs 6 to 45mm dia	1 pc	1 pc	1 Pc
Diamond Indentor 120^o	1 pc	1 pc	1 Pc
Steel ball indentor 1/16"	1 pc	1 pc	1 Pc
Test Block Rockwell 'C'	1 pc	1 pc	1 Pc
Test Block Rockwell 'B'	1 pc	1 pc	1 Pc
Test Block Rockwell Superficial 'N'	Nil	Nil	1 Pc
Allen Spanners	5 pcs	5 pcs	5 pcs
Clamping Device	1 pc	1 pc	1 pc
Dash pot oil	1 bottle	1 bottle	1 bottle
Rubber below for eleavting screw protection	1 pc	1 pc	1 pc
Instruction Manual	1 book	1 book	1 book
Brinell Microscope	Nil	1 pc	Nil
Steel Ball indentor 2.5mm	Nil	1 pc	Nil
Test Block HB 2.5/187.5	Nil	1 pc	Nil
Steel ball indentor 5mm	Nil	1 pc	Nil

Technical Specifications

Model	Unit	AI-RAS	AI-RASM	AI-RABI	AI-RAB-250	AI-TWIN
Loads	kg	60,100, 150	60,100, 150	60,100,150	60,100,150	15,30,45 (Rockwell superficial)
				187.5,250	187.5,250	60,100,150 (Rockwell)
Initial load	kg	10	10	10	10	3 (Rockwell superficial), 10 (Rockwell)
Max. Test height	mm	230	230	230	295	295
Depth of throat	mm	133	133	133	150	150
Max. Depth of elevating screw below base	mm	240	240	240	310	310
Size of base(Approx)	mm	171x423	171x423	171x423	210x470	210x470
Machine height	mm	635	635	635	845	845
Net. weight(Approx)	kg	75 kg	75 kg	75 kg	137 kg	126kg
