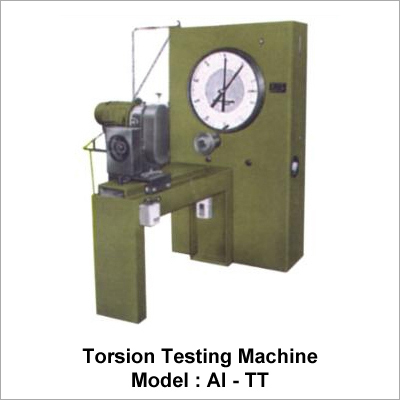

Torsion Testing Machine

Torsion Testing Machine
Torsion Testing Machine
Product Code : AI - TT
Brand Name : ADINATH IMPEX
Product Description

Torsion Testing Machine

Application & Operation

Torsion Testing Machine is designed for checking torsional property of various metal wires, tubes, bars etc.

Torque applied to the specimen is transferred to measuring dial through lever mechanism. Torque is measured by Pendulum Dynamometer system.

Torque ranges can be adjusted by adding weights. Geared motor is used to exert required torque at other end of specimen. Auto-graphics Recorder gives the relation between Torque and Angle of Twist. These machines are calibrated as per latest IS standards.

Calibration is within :1 % operating range of all models.

Technical Specifications

Model


AI-TT-10

AI-TT-20

AI-TT-50

AI-TT-100

Capacity

Nm

100

200

500

1000

Torque Ranges

Nm

20,50,100

50,100,200

50,100,250,500

100,250,500,1000

Division on Dial

Nos.

500

500

500

500

Test Speed

RPM

0.5

0.5

0.5

0.5

Clearance between Grips

mm.

0-420

0-450

0-500

0-600

Grips for round specimen Dia

Mm

4-8
8-12
7-10
10-15
15-20
10-17
17-24
24-30
1-18
18-26
26-30

Grips for Flat Speciment

Thick
Width (mm)
2-8
25
3-10
30
2-12
40
5-15
50

Power requirement 415V, 50Hz, 3 Phase

kW.

0.25

0.25

1.0

1.0
