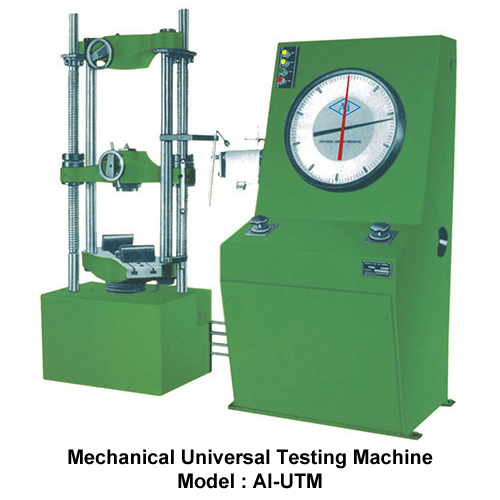

Mechanical Universal Testing Machine

Mechanical Universal Testing Machine
Mechanical Universal Testing Machine
Product Code : AI-UTM
Brand Name : ADINATH IMPEX
Product Description

Mechanical Universal Testing Machine

  • Loading accuracy as high as + 1%
  • Straining at variable speeds to suit a wide range of materials.
  • Continous roll autographic recorder supplied as standard to enable study of the behaviour of materials.
  • Motor driven threaded columns for quick effortless adjustment of lower crosshead to facilitate rapid fixing of test specimen.
  • High reading accuracy due to large size and design of dial.
  • Wide range of standard and special accessories, including load stablizer.
  • Large effective clearance between columns enables testing of standard specimens as well as structures.
  • Easy change from plain to threaded and screwed specimens.
  • Simple controls for ease of operation.
  • Robust Straining frame of an extremely rigid construction.
  • Fully enclosed & protected pendulm.
  • Safe operation ensured by means of safety devices.

Application

Adinath Universal Testing Machine is designed to perform tensile, compression, bending and shear tests on metal & other materials, both in the form of test pieces and as finished products.

Principle of Operation

Operation of the machine is by hydraulic transmission of load from test specimen to a separately housed load indicator. The hydraulic system is ideal since it replaces transmission of load through levers & knife edges, which are prone to wear & damage due to shock on rupture of test pieces.

Load is applied by a hydrostatically lubricated ram. The oil pressure in the main cylinder is transmitted to the cylinder of the pendulum dynamometer system housed in the control panel, the dynamometer piston exerts a force proportionate to the hydraulic pressure. This force is transferred through a leverage system to a pendulum.

Displacement of pendulum actuates the rack and pinion mechanism which operates the load indicating pointer.

Return movement of pendulum is effectively damped to absorb energy in the event of sudden breakage of specimen.

Machine comprises of the following:

STRAINING UNIT:

This consists of a hydraulic cylinder piston mounted on a robust base. The loading frame consists of an upper crosshead, middle crosshead and lower table.

The upper crosshead and lower table is connected by means of two plain hard chrome plated columns. The middle crosshead is fitted on two hard chrome plated threaded columns. A reduction gear motor drives the chain and sprockets fixed at the bottom of the threaded columns for height adjustment.

The cylinder and ram is individually lapped to eliminate friction. Axial loading of the ram is ensured by relieving the cylinder & ram of any possible side loading by the provision of ball seatings.

An elongation scale with least count of 1mm is provided for measurement of deformation on various samples.

Tension test is conducted by gripping the test specimen between the upper and middle crosshead.

Compression, Transverse, Bending Shear and hardness tests are conducted between the middle crosshead and the lower table

Control Panel

The control panel consists of a power pack complete with drive motor and oil tank, control valves, a pendulum dynamometer, a load indicator system and autographic recorder.

Power Pack

The power pack generates the maximum pressure of 200 kgf /cm2. The hydraulic pump provides continuously non-pulsating oil flow. Hence the load application is very smooth.

Hydraulic System:

Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of oil flow is infinitely variable.

Incorporated in the hydraulic system is a regulating valve, which maintains a practically constant rate of piston movement.

Control by this valve allows extensometer readings to be taken.

Pendulum Dynamometer

The oil pressure in the main cylinder actuates the special dynamometer system. Pressurised oil in the loading cylinder pushes up the measuring piston proportionately and deflects the pendulum. The piston is constantly rotated to eliminate friction. The system has effective damping arrangement to ensure smooth return of pendulum after sudden breakage of test piece. This unit permits selection of favourable hydraulic ratios producing relatively small frictional forces.

Load Indicating System:

This system consists of a large dial and a pointer. Displacement of pendulum actuates the rack and pinion mechanism, which operates the load indicating pointer. The pointer moves over a large dial indicating the load. A dummy pointer is provided to register the maximum load reached during the test. Window type dial is provided for easy and clear changing of load range.

Autographic Continuous Roll Load-Elongation Recorder

A continuous roll ( A strip chart ) type load-elongation recorder is provided for plotting load-elongation graph. Horizontal movement of the rack produces load ordinate of the diagram and drum rotation to elongation ordinate, in the ratio of either 1 :5 or 1 :10.

Technical Specifications

MODEL


AI-UTM-10

AI-UTM-20

AI-UTM-40

AI-UTM-60

AI-UTM-100

AI-UTM-200

AI-UTM-300

Maximum capacity

kN

100

200

400

600

1000

2000

3000

1st Measuring Range

kN

0-100

0-200

0-400

0-600

0-1000

0-2000

0-3000

Minimum Graduations

kN

0.2

0.4

1

1

2

4

5

2nd Measuring Range

kN

0-50

0-100

0-200

0-300

0-500

0-1000

0-1500

Minimum Graduations

kN

0.1

0.2

0.5

0.5

1

2

2.5

3rd Measuring Range

kN

0-25

0-50

0-100

0-120

0-250

0-500

0-600

Minimum Graduations

kN

0.05

0.1

0.25

0.2

0.5

1

1

4th Measuring Range

kN

0-10

0-20

0-40

0-60

0-100

0-200

0-300

Minimum Graduations

kN

0.02

0.04

0.1

0.1

0.2

0.4

0.5

Clearance for tensile at fully descended working piston

mm

50-700

50-700

50-700

50-800

50-850

50-900

50-900

Clearance for compression test at fully descended working piston

mm

0-700

0-700

0-700

0-800

0-850

0-900

0-900

Clearance between columns

mm

500

500

500

600

750

850

850

Ram stroke

mm

150

200

200

250

250

300

300

Straining/piston speeds (at no load)

Mm/min

0-300

0-150

0-150

0-100

0-80

0-45

0-50

CONNECTED LOAD


HP


1.3

1.3

2.3

2.5

3.5

6.5

8.5

V


400-440

400-440

400-440

400-440

400-440

400-440

400-440

Ø


3

3

3

3

3

3

3

DIMENSIONS


L x W x H (approx.)

mm

2032x750x1960

2032x750x1960

2060x750x2180

2265x750x2534

2415x815x2900

3000x1200x3600

3500x1900x4550

Weight approx

Kg

1500

1500

2500

3500

5500

12500

22000

Standard Accessories









For Tension Test









Clamping Jaws for round specimens diameter

Mm

10-20

20-30

10-20

20-30

10-25

25-40

10-25

25-40

40-55

10-25

25-45

45-70

20-40

40-60

60-80

25-50

50-70

70-90

Clamping Jaws for flat specimens thickness
Width

Mm

0-10
10-20
50
0-10
10-20
50
0-15
15-30
65
0-15
15-30
70
0-22
22-44
44-65
70
0-20
20-45
45-70
90
0-25
25-50
50-75
100

For Compression Test









Pair of compression plates for diameter

Mm

120

120

120

120

160

220

220

For Transverse Test









Table with adjustable rollers width of rollers

Mm

160

160

160

160

160

200

200

Diameter of rollers

Mm

30

30

30

50

50

70

70

Maximum clearance between supports

Mm

500

500

500

600

800

900

1000

Radius of punch tops

Mm

6,12

6,12

12,16

16,22

16,22

30,40

50,75
