Impact Testing Machine

Impact Testing Machine
Product Code : AI-IT 30 (D)
Brand Name : ADINATH IMPEX
Product Description

Supported by the team of diligent professionals, we are to manufacture, supply, trade and export high grade Impact Testing Machine. Our provided machine is manufactured by our team of trained workers, employing the use of latest technology and advance machinery. Our offered testing machine is widely appreciated in the market for its features such as reliable performance, high tensile strength, and high efficiency. Impact Testing Machine is suitable for performing izod and charpy tests on different materials.

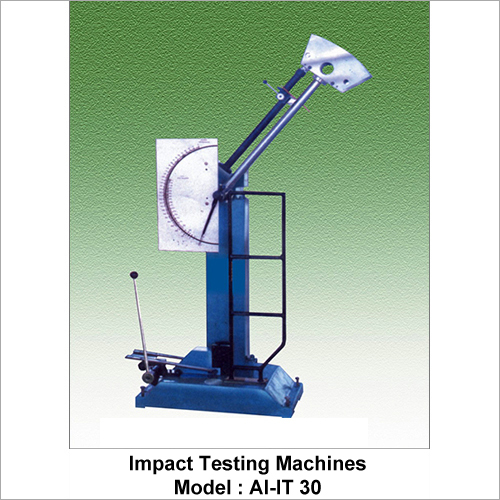

The Pendulum type Impact Testing Machine Model AI-IT 30 is designed for conducting Izod & Charpy test. The test method confirms to BS : 131 :PART IV 1972 (1993) BSEN 10045-2 : 1993 the pendulum is mounted antifiriction bearings. It has two starting positions, the upper one for charpy and the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture and the height of rise after rupture of the test specimen & the reading is shown on dial scale from maximum pointer position.

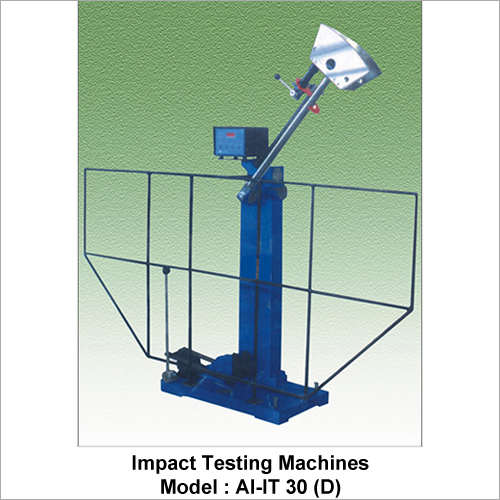

Adinath have developed electronic model AI-IT 30(D) Microprocessor based panel with digital display. The reading is directly available on digital display. It also provides printer interface.

There are two strikers and one combined support available for fitting in to the pendulum and on to the base of the machine for Izod, Charpy test changing from one striker to another is achieved simply by fixing the new striker into it's position.

Charpy Test: The Charpy test piece rests on alloy steel support anvils, fitted on the base of the machine rigidly held in position by Allen screws. End stopper is provided for quickly and accurately locating the test piece centrally between the supports.
Izod Test : The Izod test piece is clamped vertically in Izod support fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & the Allen screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied.

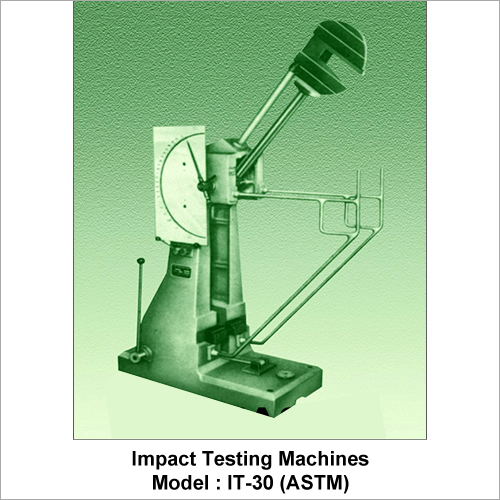

Model AI IT - 30 (ASTM) : The Impact tester offered with 300 J energy exclusively for Charpy test confirming to ASTM E-23. This machine is geometrically checked in the works to the more stringent requirements of the American standard. The accuracy of the machine is then verified by Proof Test by testing standard test specimens supplied by the NIST, USA. All two sets of the five specimens must agree with the normal values within certain tolerance specified.

Optional Accessories For AI-IT 30 / AI-IT 30 (D) :

  • Izod support for 0.450" dia Izod round specimen.
  • Self centering tong for quick and accurate setting of Charpy test specimen
  • V' notch milling cutter
  • U' notch milling cutter
  • Caliper gauge for checking V notch for Izod & Charpy.
  • Templates for checking 10 x 10mm. cross section of Izod / Charpy test specimen
  • Depth notch gauge including V & U notch gauge for checking depth below V/U notch, angle and radius

Technical Specifications :

Model

AI-IT 30

AI-IT30 D

AI-IT - 30 (ASTM) CHARPY TEST

AI-IT 1.5

AI-IT 0.5

Maximum Capacity

300K / 168 J

300J / 170 J

300 J

15 J

5 J

Minimum Scale Graduation

2 J

0.5 J

2 J

0.1 J

0.05J

Overall Size (Approx)

1.1 m x 0.45 mx
1.65m (H)

1.32m x 0.45 mx 1.65 m (H)

1.4 m x 0.5 m x 1.9 m (H)

0.5m x 0.3m x 0.52m (H)

0.5m x 0.3 m x 0.52 m (H)

Net Weight

375 Kg.

375 Kg.

450 kg.

70 Kg.

70 Kg.
