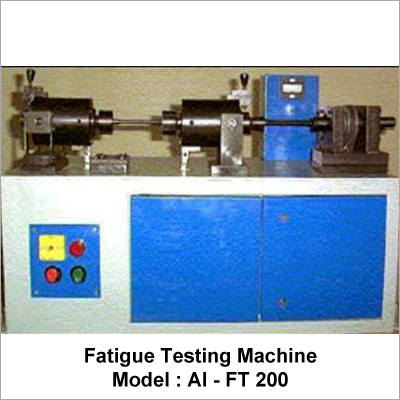

Fatigue Testing Machine

Fatigue Testing Machine
Fatigue Testing Machine
Product Code : AI - FT 200
Product Description

Fatigue Testing Machine

Application & Operation

Fatigue is one of the major reasons for failure of the materials used in all engineering designs. it is important to know fatigue properties of most of the materials before using them for actual application. Adinath lmpex make Fatigue Testing Machine of Al-FT series is most suitable for measuring fatigue strength and to draw S-N diagram. These are used by research institute, Auto industries and materials manufacturers. This isa rotating beam type machine where load is applied in reverse bending manner.

Standard 8mm dia. specimen is held in special holders at its ends and loaded such that it experiences a uniform bending moment. Specimen is rotated at 4200 RPM by a Motor. A complete cycle of reversed stress in all fibers of the specimen is produced during each revolution. The bending moment is applied through a lever system and can easily be changed by moving a weight over a lever.

Features

  • Light weight, compact size, simple design.
  • Table model, No need of foundation.
  • Simple lever system for changing load.
  • Accurately calibrated as per IS 5075.
  • Calibration in Nm available on request.

Technical Specifications

Maximum bending moment

Kgcm

200

Bending moment adjustable

Kgcm

30-200

Ranges

Kg cm
Kg cm
30-100
100-200

Gripping dia. Of specimen

Mm

12

Testing Dia. Of specimen

Mm

8

Rotating Speed

Rpm

4200

Accuracy of applied bending moment


+1%

Digital counter


6

Power required

HP

0.5

Main supply

A.C. 3 ph

440V, 50Hz

Overall size (approx)

Mm

1000 L x 500 W X 600 H

Weigth (approx)

Kg

120
