Electronic Spring Testing Machines

Electronic Spring Testing Machines
Electronic Spring Testing Machines
Product Code : AI-STM
Product Description

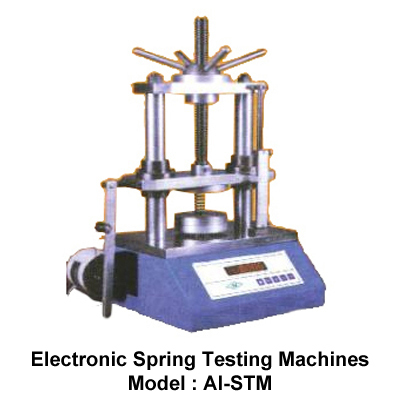

Electronic Spring Testing Machines

Adinath range of spring testing machines are used for quick and accurate testing of tension and compression springs. The machine comprises of two hard crome plated columns with fine cut single screw with hand wheel for manual loading and unloading arrangement.

The machine uses a high precision load cell for measurement of force. For displacement measurement, mechanical linear scale or digital vernier caliper or rotary encoder is used.

Measuring system of machine is based on latest microprocessor based electronics with tare facility.

Options

  • Digital vernier scale with 0.01 mm resolution for displacement indication (6" or 12")
  • Rotary encoder with separate digital unit 0.1 or 0.01 mm resolution.
  • 9/24 pin Dot-Matrix printer interface.
  • Serial interface hardware with data transfer software to computer.
  • Motorized loading operation.

Features

  • Microprocessor based unit.
  • Force Measurement Accuracy +/- 1 % of indicated load or 0.5 % of full load value whichever is higher.
  • Quick and accurate measurement.
  • Interchangeable load cells.
  • Modulus data for load & displacement.
  • Optional Dot-Matrix printer interface.
  • Optional RS-232 Computer interface with window based software.

Technical Specifications

Model

AI-STM20

AI-STM200

AI-STM500

Maximum Capacity

20kg, 10kg, 5kg

200kg, 100kg, 50kg

300kg, 500kg

Width between columns

160mm

160mm

250mm

Maximum cross head travel

160mm

160mm

250mm

Force measuring resolution

1gm

10gm

0.1 Kg
