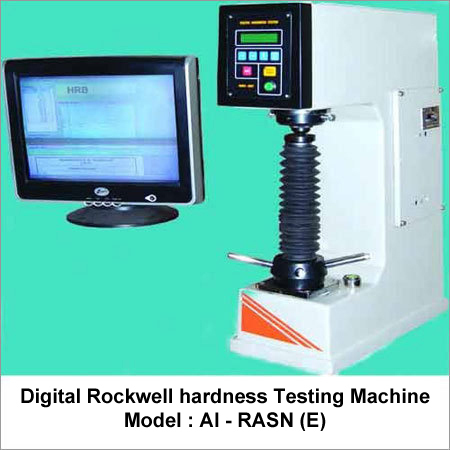

Digital Rockwell hardness Testing Machine

Digital Rockwell hardness Testing Machine
Digital Rockwell hardness Testing Machine
Product Code : Al - RASN (E)
Brand Name : ADINATH IMPEX
Product Description

Digital Rockwell hardness Testing Machine

PRINCIPLE

Rockwell & Rockwell Superficial tests consist of forcing on indenter (Diamond or Ball) into the surface of a test piece in two steps i. e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation. Brinell test consists of forcing a hardened ball into surface of a test piece with a specified test-force and measuring the diameter of indentation for evaluation of Brinell Hardness number. The diameter of impression is measured out of side of machine by Brinell microscope. Brinell hardness number is found out by refering corresponding hardness tables showing hardness number against dia. of indentation for specified ball diameter and test force.

Model Al - RASN (E) : (Digital / Computerised)

  • Hardness Tester for Rockwell tests. Motorised for automatic operation cycle i. e. load / dwell / unload.
  • Preliminary Test Force - 98.07 N (10 Kgf.)
  • Additional Test Force - 490.3, 882.6, 1373N (50, 90, 140 kgf.)
  • Total Test Force - 588.4, 980.7, 1471 N (60, 100, 150 kgf.)
  • Test Force selection by external dialing.
  • Set position with LED bar indicator for easy operation.
  • Key board entry through reliable membrane switches for scale/ dwell time / high low limit selection.
  • Large size scale display for easy reading with 0.1 Rockwell resolution.
  • Result with status display - High, Low & Ok
  • User Friendly Software.
  • Printer interface.
  • Optional - PC interface & software

Technical Data

MODEL

UNIT

AI-RASN (E)

Al-RASN (T)

AI-RASN (B)

Major load

N (kgf)

588.4, 980.7,1471 (60, 100, 150)

147.1, 294.2, 441.3, 588.4, 980.7, 1471 (15,30,45,60,100,150)

588.4, 980.7,1471 (60, 100, 150)

Minor Load

N (kgf)

98.07 [10]

29.42, 98.07 [3.10]

98.07 [10]

Max. Test Height

Mm

230

230

230

Depth of Throat

mm

133

133

133

Net weight Approx.

kg

73

62

65

Machine Dimensions (Approx)

mm

L-565
W-180
H-627
L-565
W-265
H-627
L-565
W-265
H-627
