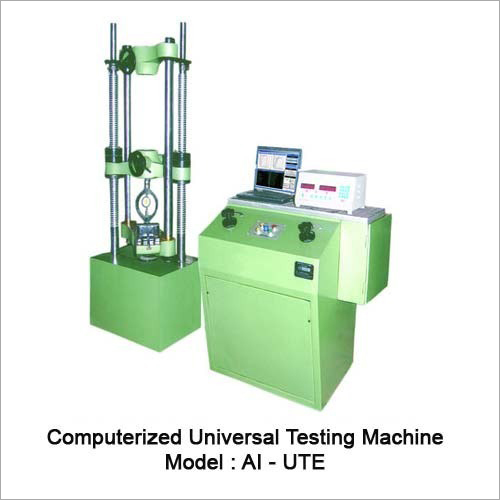

Computerized Universal Testing Machine

Construction : Adinath make electronic Universal Testing machines comprise of

a. Loading Unit
b. Measuring Control Panel

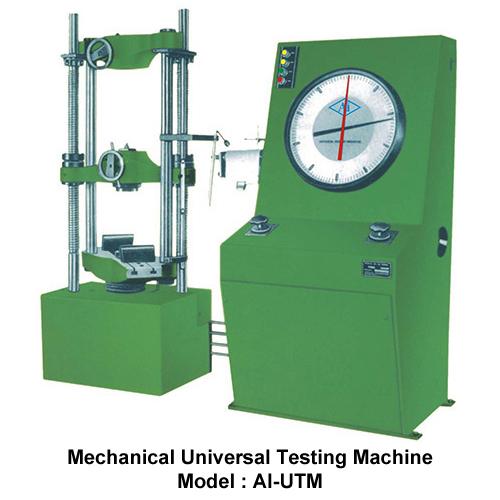

a. Loading Unit :-This is similar to standard loading unit of analogue type universal testing machine. In addition to standard features of regular loading unit, a ROTARY ENCODER is attached to the hydraulic ram to get accurate displacement of the ram.

b. Measuring Control Panel:This includes,

1. Highly precision, sealed and very accurate pressure transducer mounted on the hydraulic pressure line of the loading unit.

2. Highly stable data ACQUISITION system to convert Analogue output of pressure transducer into equivalent Digital Data.

Digital Signal Processing Unit:

This is a state of the art, MICROPROCESSOR based signal processor which operates on Digital o/p signal from Data ACQUISITION part and displays the test results on large digital displays. This also handles relevant calculations to get, UTS value, °/o Displacement, Break load etc.

4. Keyboard/Display Panel: This is ergonomically designed for best interaction between operator and the machine. This incorporates sealed MEMBRANE type keyboard for data feeding & large display for load displacement. Apart from above a parallel

printer port & R3232 serial communication port is also incorporated. Through the printer port a Dot Matrix printer can be attached to get stress strain curves as well as other test results. RS 232 port can be used for PC interface and hence to add variety of application softwares.

ACCURACY AND CALIBRATION:

Adinath Universal Testing Machines are precisely controlled for accuracy and reliable calibration during every stage of manufacture. The machines are calibrated in accordance with B.S.:1610 and I.S.:1828. An accuracy of i10/o is guaranteed from 20% of the load range selected to full load. Below 20% of the selected range the maximum permissible error is 0.2% of the full load reading.

FEATURES : UTE-( M P BASED)

  • Large display for load and displacement.
  • RS-232 Corn port for Computer Interface
  • °Centronic Parallel port for Printer/Plotter. Interface.

Results Include.

  • Load vs. Displacement
  • Max. Load
  • Max. Displacement
  • UTS Value
  • Proof Stress (with extensometer)
  • Data entry through sealed membrane type keyboard.

FEATURES : UTE-(PC BASED)

  • Window based software
  • Extensive Graphic Support.
  • RDBMS based file handling.
  • Variety of software packages.
  • Print format of customer's choice.
  • Result includes
  • Load vs. displacement curve,
  • max. load, Young's Modulus,
  • 0.1% or 0.2% proof test (with Extensometer),
  • Real time graph etc.
Technical Specifications

MODEL

AI-UTE 10

AI-UTE 20

AI-UTE 40

AI-UTE 60

AI-UTE 100

Max capacity (kN)

100

200

400

600

1000

Minimum graduation (kN)

0.005

0.01

0.02

0.03

0.05

Clearance for tensile at fully descended working piston (mm)

50-700

50-700

50-700

50-800

50-800

Clearance for compression at fully descended working piston (mm)

0-700

0-700

0-700

0-800

0-850

Clearance between columns (mm)

500

500

500

600

750

Ram stroke (mm)

150

200

200

250

250

Straining /piston speeds (mm/min) at no load

0-300

0-150

0-150

0-100

0-80

Connected Load






HP

1.3

1.3

2.3

2.5

3.5

V

400-440

400-440

400-440

400-440

400-440


3

3

3

3

3

Dimensions






LXWXH (approx) (mm)

2032x750 x1960

2032x750x1960

2060x750x2180

2265x750x2534

2415x815x2900

Standard Accessories






For tension test






Clamping jaws for round specimen diameter (mm)

10-20

20-30

10-20

20-30

10-25

25-40

10-25

25-40 & 40-55

10-25

25-45 & 45-70

Clamping jaws for flat specimens thickness (mm)
Width
0-10
10-20
50
0-10
10-20
50
0-15
15-30
65
0-15
15-30
70
0-22
22-44 & 44-65
70

For Compression Test






Pair of compression plates of diameter (mm)

120

120

120

120

160

For Transverse Test






Table with adjustable rollers width of rollers (mm)

160

160

160

160

160

Diameter of the rollers (mm)

30

30

30

50

50

Max.clearance between supports

500

500

500

600

800

Radius of punch tops (mm)

6,12

6,12

12,16

16,22

16,22
